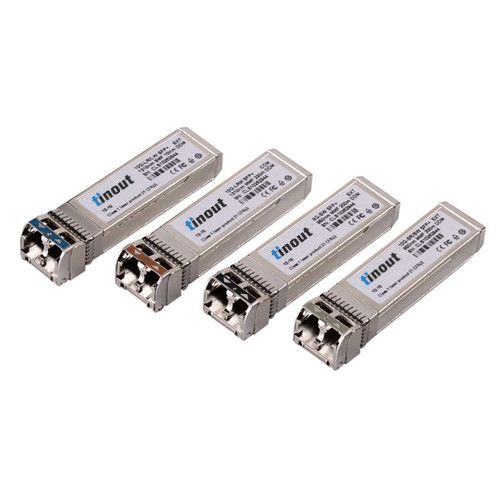

China factory Tinout made 10G Ethernet SFP+ ZR, 1550nm, 80km, DDM/DOM, Low Power Dissipation , good price, 3year warranty, big stock, compatible with CISCO, HP, BROCADE, QLOGIC, H3C, JUNIPER, EXTREME.
Tinout's SFP+ transceivers are designed by Tinout factory made 10G Ethernet SFP+ ZR, 1550nm, 80km, DDM/DOM, Low Power Dissipation , best price, 3year warranty, big stock, compatible with CISCO, HP, BROCADE, QLOGIC, H3C, JUNIPER, EXTREME.
SFP+ transceivers are designed for use in 10Gigabit Ethernet links up to 80km over Single Mode Fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR.The product is RoHS compliant and lead-free.
Features
SFP+ transceiver are multi-purpose optical modules
10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm.
The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications
based on the IEEE 802.3ae and Fibre Channel standards,
Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 10GBase-Ethernet.
|
SPECIFICATIONS | |
|
Form Factor |
SFP+ |
|
Distance |
80km SMF |
|
Protocol |
10GBASE-ZR 10G Ethernet |
|
Data Rate (max) |
10.5 Gb/s |
|
Low End Case Temperature (ˇăC) |
|
|
High End Case Temperature (ˇăC) |
|
|
Diagnostics |
DDM/DOM |
|
Transmitter & Power Out |
EML, Pout 0~5dB |
|
Receiver & Sense |
APD, Pin >-23dBm |
|
Voltage Supply |
3.3 |
|
Connector |
LC Dulplex |
|
RoHS |
YES |
|
Certification |
CE FCC. |
