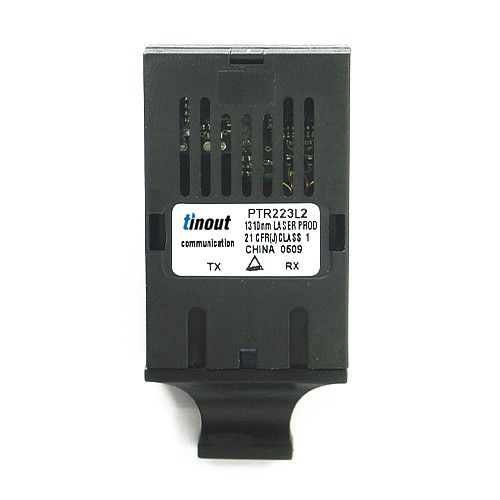

1X9 Multi-Mode Transceiver
Features
1X9 Package Multi-Mode Transceiver
Single +3.3V or +5V Power Supply
LVPECL/PECL Data Interface, DC Coupling
Maximum Soldering Temerature&Time:240¡æ/10s
Compliant with Telcordia (Bellcore) GR-468-CORE
Fully Compliant with ITU-T G957, G958 Specifications
Eye Safety, Designed to Meet Laser Class 1, Compliant with IEC 60825-1
Low Cost,Low Power Consumption
RoHS Compliant Products Available
Product
| Part Number | Data Rate | Source | Wavelength | Voltage | Distance | Output Power | Sensitivity | Connector | Application |
| PTR2282 |
155Mb/s | VCSEL | 850nm | 5V | 2km |
-10¡~-3dBm | =-24dBm | SC | OC-3/STM-1/ Fast Ethernet |
| PTR2282-3 |
155Mb/s | VCSEL | 850nm |
3.3V |
2km |
-10¡~-3dBm | =-24dBm | SC | OC-3/STM-1/ Fast Ethernet |
| PTR2282-ST |
155Mb/s | VCSEL | 850nm |
5V |
2km |
-10¡~-3dBm | =-24dBm | ST | OC-3/STM-1/ Fast Ethernet |
| PTR2282-3-ST |
155Mb/s | VCSEL | 1310nm |
3.3V |
2km |
-10¡~-3dBm | =-24dBm | ST | OC-3/STM-1/ Fast Ethernet |
| PTR223L2 |
155Mb/s | LED | 1310nm |
5V |
2km |
-19¡~-10dBm |
=-32dBm | SC | OC-3/STM-1/ Fast Ethernet |
| PTR223L2-3 |
155Mb/s | LED | 1310nm | 3.3V | 2km |
-19¡~-10dBm | =-32dBm | SC | OC-3/STM-1/ Fast Ethernet |
| PTR223L2-ST |
155Mb/s | LED | 1310nm | 5V | 2km |
-19¡~-10dBm | =-32dBm | ST | OC-3/STM-1/ Fast Ethernet |
| PTR223L2-3-ST |
155Mb/s | LED | 1550nm | 3.3V | 2km |
-19¡~-10dBm | =-32dBm | ST | OC-3/STM-1/ Fast Ethernet |
| PTR2685 |
1.25GMb/s |
VCSEL | 850nm | 5V | 0.5km | -9.5¡~-3dBm | =-17dBm | SC | Gigabit Ethernet |
| PTR2685-3 | 1.25GMb/s |
VCSEL | 850nm | 3.3V | 0.5km |
-9.5¡~-3dBm | =-17dBm | SC | Gigabit Ethernet |
1. Add Capital ""F"" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended for Reference.
