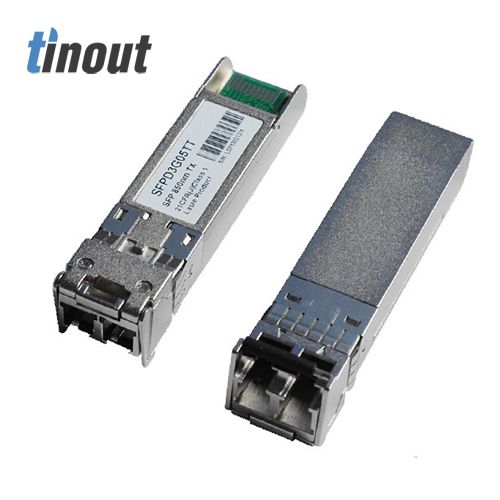

  • 3G-SDI SFP 2xLC Dual optical Transmitter/Receiver

    Description:

    The SFPS3G10TX is a single channel optical transmitter module engineered for exceptional performance with SDI pathological patterns. It is small form factor pluggable module as defined SMPTE 197-2006. The SFPS3G10TX contains a 1310nm FP laser and a high speed laser driver inside the module; it is designed to provide error-free transmission of signals from 50Mbps to 3Gbps over single mode fiber (9/125) and specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE292M and SMPTE 424M SDI pathological patterns. It is with the SFP 20-pin connector to allow hot plug capability. The SFPS3G10TX provides extensive operational status monitoring through an I2C interface. Output optical power, bias current, supply voltage and operating temperature are monitored. If a parameter monitored is outside the pre-defined range, the alarm flag associated with the parameter will be raised.

    Features:

    • Up to 70km Transmission distances.
    • Data rate up to 3Gb/s
    • SMPTE 297-2006 Compatible;
    • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
    • Hot-pluggable
    • Laser disable pin
    • Digital diagnostics and control via I2C interface including:
    • Monitoring laser bias current, average output power, supply voltage and temperature
    • Alarm reporting
    • Single +3.3V power supply
    • RoHS compliant
    • Telcordia GR-468 compliant
    • Operating temperature range: -40∼C to +85∼C (case)

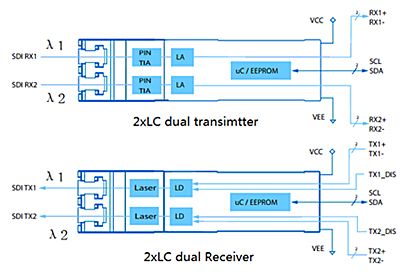

    Block Diagram:
    SDI-SFP-2xLC-Dual

    Applications:

    1. SMPTE 297-2006 compatible optical-to-electrical interfaces
    2. SD/HD/3G-SDI Video System

    3G-SDI SFP 2xLC Dual Transmitter:

    P/N

    Data rate

    Wavelength

    Power

    Distance

    Package

    Temp.

    (Mb/s)

    竹(nm)

    (dBm)

    (km)

    (⊥)

    SFPD3G10TX

    50 to 3000

    1310 FP

    39

    10

    SFP 2xLC

    -40~+85

    SFPD3G30TX

    50 to 3000

    1310 DFB

    50

    40

    SFP 2xLC

    -40~+85

    SFPD3G50TX

    50 to 3000

    1550 DFB

    0+5

    50

    SFP 2xLC

    -40~+85

    3G-SDI SFP 2xLC dual Receiver:

    P/N

    Data rate

    Wavelength

    Sen.

    Distance

    Package

    Temp.

    (Mb/s)

    竹(nm)

    (dBm)

    (km)

    (⊥)

    SFPD3G00RX

    50 to 3000

    1100~1620

    20

    Up to 70

    SFP 2xLC

    -40~+85
