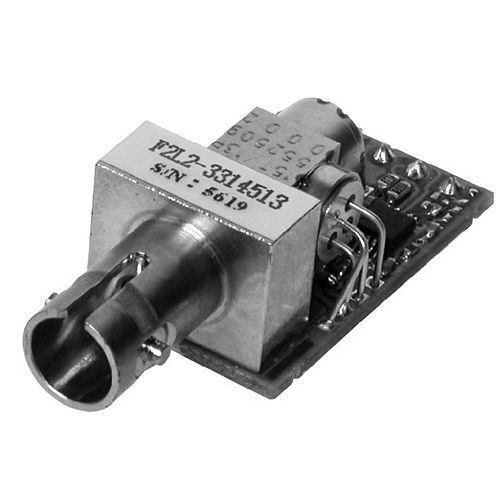

Unbalance Date Rates Single Fiber Transceiver

Features

Unbalance Upstream/Downstream Data Rates Industry Standard 1×9 Package Footprint Industry Standard 1×5 FC,ST Package Footprint Single SC Connector Single +3.3or+5VPower Supply Maximum Soldering Temperature & Time:240℃/10s PECL/TTL Data Interface Eye Safety Designed to Meet Laser Class1 Compliant with Telcordia(Bellcore)GR-468-CORE RoHS Compliant Products Available

Product

Part Number	Data Rate (TX/RX)	Distance	Wavelength	Source	Voltage	+5VFiber Type	Output Power	Sensitivity	Application
F42-3311512	622Mb/s∣155Mb/s	20km	1310nm	FP	+5V	SM	-13～-6dBm	≤-34dbm	Digital Video
F24-3511512	155Mb/s∣622Mb/s	20km	1550nm	FP	+5V	SM	-13～-6dBm	≤-28dbm	Digital Video
F42-1521512	622Mb/s∣155Mb/s	60km	1550nm	DFB	+5V	SM	-5～-0dBm	≤-34dbm	Digital Video
F24-1311512	155Mb/s∣622Mb/s	60km	1310nm	FP	+5V	SM	-5～-0dBm	≤-28dbm	Digital Video
F62-3311512	1.25Gb/s∣155Mb/s	20km	1310nm	FP	+5V	SM	-5～-0dBm	≤-34dbm	Digital Video
F26-3511512	155Mb/s∣1.25Gb/s	20km	1550nm	FP	+5V	SM	-13～-6dBm	≤-22dbm	Digital Video
F62-1521512	1.25Gb/s∣155Mb/s	60km	1550nm	DFB	+5V	SM	-5～-0dBm	≤-35dbm	Digital Video
F26-1311512	155Mb/s∣1.25Gb/s	60km	1310nm	FP	+5V	SM	-5～-11dBm	≤-23dbm	Digital Video
F82-3521512	2.5Gb/s∣155Mb/s	20km	1550nm	DFB	+5V	SM	-5～-0dBm	≤-34dbm	Digital Video
F28-3311512	155Mb/s∣2.5Gb/s	20km	1310nm	FP	+5V	SM	-13～-6dBm	≤-17dbm	Digital Video
F2L2-3311513M	155Mb/s∣DC～0.5Mb/s	2km	1310nm	FP	+5V	SM	≥～-10dBm	≤-18dbm	Digital Video
FL22-3511514M	DC～0.5Mb/s∣155Mb/s	2km	1550nm	FP	+5V	SM	-9～-4dBm	≤-33dbm	Digital Video
F6L2-3311513M	1.25Gb/s∣DC～0.5Mb/s	2km	1310nm	FP	+5V	SM	≥～-10dBm	≤-18dbm	Digital Video
FL26-3511514M	DC～0.5Mb/s∣155Mb/s	2km	1550nm	FP	+5V	SM	-13～-7dBm	≤-20dbm	Digital Video
F2L2-3311513	155Mb/s∣DC～0.5Mb/s	30km	1310nm	FP	+5V	SM	≥-10dBm	≤-22dbm	Digital Video
FL22-3511514	DC～0.5Mb/s∣155Mb/s	30km	1550nm	FP	+5V	SM	-10～-7dBm	≤-34dbm	Digital Video
F2L2-1311513	155Mb/s∣DC～0.5Mb/s	60km	1310nm	FP	+5V	SM	-5～-0dBm	≤-28dbm	Digital Video
FL22-1511514	DC～0.5Mb/s∣155Mb/s	60km	1550nm	FP	+5V	SM	-5～-0dBm	≤-34dbm	Digital Video
F2L2-0421513	155Mb/s∣DC～0.5Mb/s	80km	1490nm	DFB	+5V	SM	-3～+2dBm	≤-28dbm	Digital Video
FL22-1511514	DC～0.5Mb/s∣155Mb/s	80km	1550nm	DFB	+5V	SM	-3～+2dBm	≤-34dbm	Digital Video
F4L2-1311513	622Mb/s∣DC～0.5Mb/s	30km	1310nm	FP	+5V	SM	-5～0dBm	≤-22dbm	Digital Video
FL24-1511514	DC～0.5Mb/s∣622Mb/s	30km	1550nm	FP	+5V	SM	-10～-7dBm	≤-27dbm	Digital Video
F4L2-0421513	1.25Gb/s∣DC～0.5Mb/s	80km	1490nm	DFB	+5V	SM	-3～+2dBm	≤-28dbm	Digital Video
FL24-0521514	DC～0.5Mb/s∣622Mb/s	80km	1550nm	DFB	+5V	SM	-3～+2dBm	≤-26dbm	Digital Video
F6L2-3311513	1.25Gb/s∣DC～0.5Mb/s	25km	1310nm	FP	+5V	SM	-5～0dBm	≤-22dbm	Digital Video
FL26-3511514	DC～0.5Mb/s∣1.25Gb/s	25km	1550nm	FP	+5V	SM	-10～-7dBm	≤-22dbm	Digital Video
F6L2-1311513	1.25Gb/s∣DC～0.5Mb/s	35km	1310nm	FP	+5V	SM	-2～+3dBm	≤-22dbm	Digital Video
FL26-1511514	DC～0.5Mb/s∣1.25Gb/s	35km	1550nm	FP	+5V	SM	-5～0dBm	≤-22dbm	Digital Video
F6L2-0421513	1.25Gb/s∣DC～0.5Mb/s	70km	1490nm	DFB	+5V	SM	-2～+K413dBm	≤-28dbm	Digital Video
FL26-0521514	DC～0.5Mb/s∣1.25Gb/s	70km	1550nm	DFB	+5V	SM	-5～0dBm	≤-22dbm	Digital Video
F8L2-3521513	2.5Gb/s∣DC～0.5Mb/s	20km	1550nm	DFB	+5V	SM	-5～0dBm	≤-22dbm	Digital Video
FL28-3311514	DC～0.5Mb/s∣1.25Gb/s	20km	1310nm	FP	+5V	SM	-10～-7dBm	≤-17dbm	Digital Video

Note:
1. Add Capital "F" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended Distance For Reference .


Ordering Information

F □□-□□□□□□□□ (ab-cdefghij)

A Down-Link Data Rate 1=52Mb/s 2=155Mb/s 3=270Mb/s 4=622Mb/s 6=1.25Mb/s 8=2.5Gb/s L1=0.5～5Mb/s L2=DC～0.5Mb/s   B Up-Link Data Rate 1=53Mb/s 2=156Mb/s 3=270Mb/s 4=623Mb/s 6=1.26Mb/s 8=2.5Gb/s L1=0.5～6Mb/s L2=DC～0.6Mb/s   C Transmission Distance 0=Ultra-Long Reach 1=Long Reach 2=Intermediate 3=Short Reach     D Wavelength 3=1310nm 4=1490nm 5=1550nm E LD Type 1=FP-LD 2=DFB-LD 6=DFB-LD withIsolator   Connector 1=SC/PC 2=ST/PC 3=FC/PC F 4=1x5FC 5=1x5ST G Operating Voltage 3=+3.3V 5=+5V   H Type 1=Single Fingle Bi-Di       Down/SD Interface 1=TX-TTL,RX-TTL 2=TX-TTL,RX-PECL 3=TX-PECL,RX-TTL, I 4=TX-TTL,RX-TECL   J Fiber Type Blank=sm M=MM

1×3 BI-DI SM modules SM BI-DI Transmitter 、Receiver module ●Low-speed ReceiverLD ●Low-speed TransmitterPD Module

Type Data rate （Kbps） Description Laser Transmitter Encapsulation Supply Voltage Data Level TR32 500K SM, 20km 1310nm FP 1×3 ST +5V TTL TT33 500K SM, 20km 1550nm FP 1×3 ST +5V TTL TR34 500K SM, 40km 1310nm FP 1×3 ST +5V TTL TT35 500K SM, 40km 1550nm FP 1×3 ST +5V TTL
