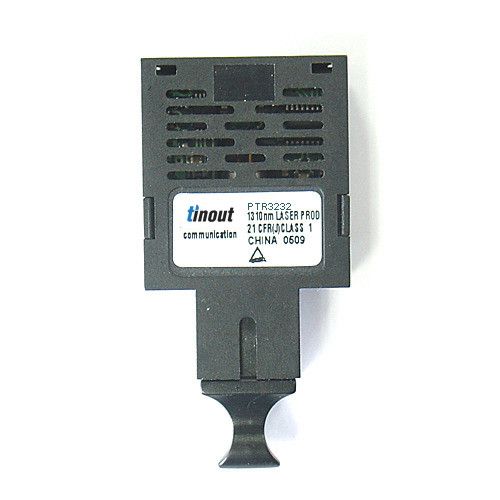

WDM 1X9 Optical Transceiver
Features
Single Fiber Bi-Directional Operation
Integrated 1550/1310nm or 1550/1490nm WDM Filter
Single +3.3V or +5V Power Supply
LVPECL/PECL Data Interface, DC Coupling
1X9 PIN Package Optional
Maximum Soldering Temperature&Time:240¡æ/10s
Compliant with Telcordia(Bellcore)GR-468-CORE
Eye Safety,Designed to Meet Laser Class 1, Compliant with IEC60825-1
RoHS Compliant Products Available
Product
| Part Number | Data Rate | Source | Wavelength | Voltage | Distance | Output Power | Sensitivity | Connector | Application |
| PTR3232 PTR3252 |
155Mb/s | FP FP |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 20km |
-13¡~-6dBm |
¡Ü-36dBm | SC | OC-3/STM-1/Fast Ethernet |
| PTR3234 PTR325D4 |
155Mb/s | FP DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 40km |
-5¡~0dBm | ¡Ü-34dBm | SC | OC-3/STM-1/Fast Ethernet |
| PTR3236 PTR325D6 |
155Mb/s | FP DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 60km |
-3¡~+2dBm | ¡Ü-34dBm | SC | OC-3/STM-1/Fast Ethernet |
| PTR3249C8 PTR325D8 |
155Mb/s | DFB DFB |
1490nmTx/1550nmRx 1550nmTx/1490nmRx |
3.3V/5V | 80km |
=0dBm | ¡Ü-35dBm | SC | OC-3/STM-1/Fast Ethernet |
| PTR3435 PTR3455 |
622Mb/s | FP FP |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 5km |
-13¡~-6dBm | =-26dBm | SC | OC-12/STM-4 |
| PTR3434 PTR345D4 |
622Mb/s | FP DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 40km |
-3¡~+2dBm | =-28dBm | SC | OC-12/STM-4 |
| PTR3449C8 PTR345D8 |
622Mb/s | FP DFB |
1490nmTx/1550nmRx 1550nmTx/1490nmRx |
3.3V/5V | 80km |
=0dBm | =-28dBm | SC | OC-12/STM-4 |
| PTR3631 PTR365D1 |
1.25Gb/s | FP DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 15km |
-9¡~-3dBm | =-22dBm | SC | Gigabit Ethernet/ Fiber Channel |
| PTR363D4 PTR365D4 |
1.25Gb/s | DFB DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V/5V | 40km |
-2¡~+3dBm | =-23dBm | SC | Gigabit Ethernet/ Fiber Channel |
| PTR3649C8 PTR365D8 |
1.25Gb/s | DFB DFB |
1490nmTx/1550nmRx 1550nmTx/1490nmRx |
3.3V/5V | 80km |
=0dBm | =-24dBm | SC | Gigabit Ethernet/ Fiber Channel |
1. Add Capital "F" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended for Reference.
