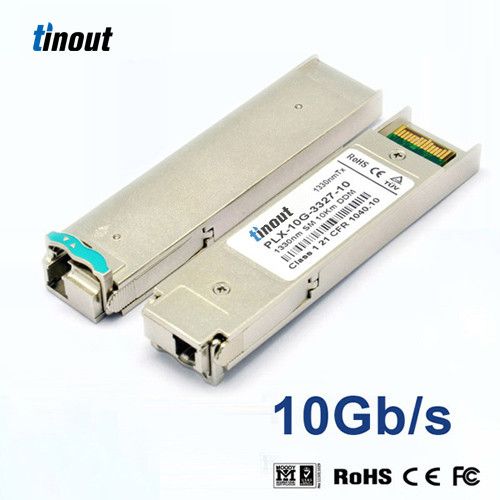

Datacom 10 Gb/s 10km WDM XFP (PLX-10G-LR)
Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-M-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. If SONET/SDH compliance is required, please see Finisar Part Number FTRX-1411M3.
Product Features
- Up to 10.5 Gb/s bi-directional data links
- Hot pluggable XFP footprint
- Maximum link length of 10 km
- Uncooled 1310 nm DFB laser
- Duplex LC connector
- Power dissipation <2.5 W
- Built-in digital diagnostic functions
- Temp range: -5°C to 70°C
- 1330TX/1270RX and 1270TX/1330RX
- Distance Up to 10, 20, 40 km
- XFI Loopback Mode
- No reference Clock required
- RoHS Compliant
Applications
- 10GBASE-LR/LW 10 Gb/s Ethernet
- 1200-SM-LL-L 10 Gb/s Fibre Channel
- 10GBASE-BX at 10.3125 Gb/s
- 10GBASE-BX at 9.953 Gb/s
Standard Products
Part Number | Data Rate | Source | Wavelength | Voltage | Distance | Output Power | Sensitivity | Application |
PLX-10G-2733-10 PLX-10G-3327-10 |
10Gbps | DFB+PIN | 1270nm 1330nm |
3.3V | 10km | -8.2~+0.5dBm | ≦-12.6dBm | 10G Ethernet |
PLX-10G-2733-40 PLX-10G-3327-40 |
10Gbps | DFB+PIN | 1270nm 1330nm |
3.3V | 40km | -1~+4dBm | ≦-16.0dBm |
10G Ethernet |
-
