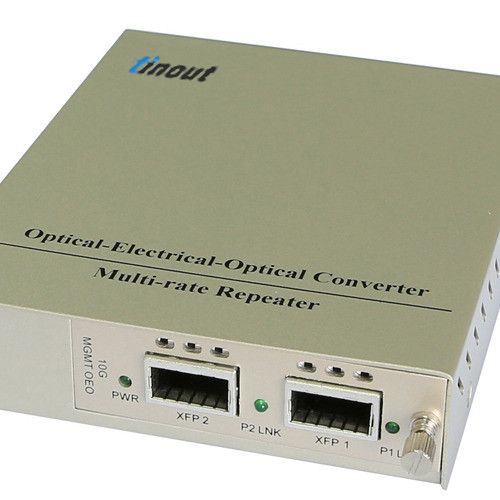

10G OEO fiber optic media converter

Description:

Tinout provides 10G Optical-Electrical-Optical Converter(3R) and module cards to apply in the solution of FTTx, CWDM/DWDM, with the speed of 10G.

POF-OEO-10G-3R, its Module Card support network management(Web,SNMP, Console) by management card of POF-R16 2U Rack (16 channel) chassis, allowing users to view system statues, counters, and network statistics. Moreover, it also can be remote managed by management card of 2U Rack when standalone use.

With 3 types Interface as belows:
SFP+ to SFP+
SFP+ to XFP
XFP to XFP

MAIN APPLICATIONS

1. Connection between fiber to fiber 10Gbps Ethernet equipment function as fiber mode converter ,or as fiber repeater for long distance transmission.

2. Media converter for network backbone(SAN, LAN, MAN).

3. Can be applied in Telecommunication room, R&D laboratory, Data center, and etc.

4. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.

KEY Features:

1. 3R Repeater

2. Support Jumbo Frame

3. Transparent Transport and very low delay

4. Support ITUT prescribed DWDM/CWDM wavelength

5. Support DMI function for SFP+/XFP fiber module

6. Support PRBS31 Pattern Generator and Checker function

7. Support Loopback test function

8. Economic In-band Management function

9. Powerful Network Management function(Web,SNMP,Console)

10. Support hot plugging

11. Support 2U Rack (16 channel) and standalone use

12. Full State Led display

13. Easy installation

Technical Information:

Equipment function
 3R Repeater

Transmission Speed
 10Gb/s ( 9.95Gb/s-11.35Gb/s )

Protocols
 IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM)

Access Type
 10G LAN/ 10G WAN

Interface Type
A Type: SFP+ To/From SFP+

B Type: SFP+ To/From XFP

C Type: XFP To/From XFP

Transmission Distance
 SFP+ module: Up to 80Km

 XFP module: Up to 80Km

 Maximum Packet

 Forwarding Rate
 14,880,950/S

 Network management

information:
•  Card type information

•  SFP+ or XFP fiber module detection

•  SFP+ or XFP fiber module DMI function ( Temperature , Voltage , Optical power )

•  Link status detector

•  Enable/Disabled Loopback test function

•  Enable/Disable PRBS Generator and checker function

•  Rate select ( 10Gbase-Lan or Wan )

•  Remote card's status monitor ( only in pairs )

power requirement
 Rack-mountable : AC 85 ~ 220V OR DC -48V

Standalone: AC 220V OR DC -48V

Power consumption: ≤6W

Work Environment
Operating Temp: 0~ 50 °C

Storage Temp: -10~ 70 °C

Humidity: 5%~90% ( non-condensing )

 Dimension
 Card : 11.5mm ( W ) × 78mm ( D )

Standalone : 156mm ( W ) × 128mm ( D ) × 32mm ( H )
