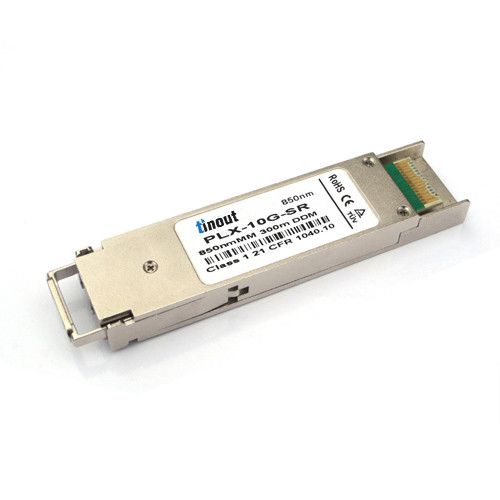

Datacom Cisco-Compatible 10GbE 300m XFP (PLX-10G-SR)
Finisar's FTLX8511D3(Tinout's PLX-10G-SR) Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038.
Product Features
• Hot-pluggable XFP footprint
• Supports 9.95Gb/s to 10.5Gb/s bit rates
• Power dissipation <1.5W
• RoHS-6 compliant (lead-free)
• Temperature range 0¡ãC to 70¡ãC
• Single power supply: 3.3V
• Maximum link length of 300m
• Uncooled 850nm VCSEL laser.
• Duplex LC connector
• No Reference Clock required
• Built-in digital diagnostic functions
• Standard bail release mechanism
Applications
• 10GBASE-SR/SW 10G Ethernet
• 1200-Mx-SN-I 10G Fibre Channel
|
Part Number |
Data Rate |
Source |
Wavelength |
Voltage |
Distance |
Output Power |
Sensitivity |
Application |
|
10Gbps |
VCSEL |
850nm |
3.3V |
300m |
-5~-1dBm |
¨Q-11.1dBm |
10 Gigabit Ethernet/Fiber Channel | |
|
10Gbps |
DFB |
1310nm |
3.3V |
10km |
-8.2~+0.5dBm |
¨Q-14.0dBm |
10 Gigabit Ethernet/Fiber Channel | |
|
10Gbps |
EML |
1550nm |
3.3V |
40km |
-1~+2 dBm |
¨Q-16.0dBm |
10 Gigabit Ethernet/Fiber Channel | |
|
10Gbps |
EML |
1550nm |
3.3V |
80km |
0~+4 dBm |
¨Q-23.0dBm |
10 Gigabit Ethernet/Fiber Channel |
