•   All Product > 10GbE CWDM|DWDM Modules > DWDM SFP+ Optical transceivers

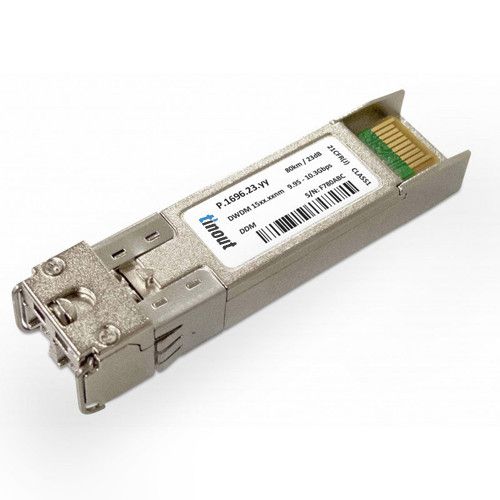

  • The Tinout DWDM SFP+ is specifically designed for carriers and large enterprises that require a scalable, flexible, cost-effective system for multiplexing, transporting and protecting high-speed data, storage, voice and video applications in point-to-point, add/drop, ring, mesh and star network topologies. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz or 500GHz ITU Grid, C Band DWDM wavelength.
    A guaranteed minimum optical link budget of 23 dB is offered.

    Featured: Application:
    • Support 9.95 Gbps to 11.1Gbps
    • Complaint to SFP+ MSA
    • Compliant to IEEE 802.3ae 10GBASE-ZR
    • Compliant with OC-192 / SDH STM LR2
    • Maximum Link Length of 80 km
    • Temperature-stabilized DWDM EML Transmitter
    • 23 dB Power Budget at Least
    • 100 or 50GHz ITU Grid, C Band
    • SFF-8472 Digital Diagnostic Function
    • AC/AC Coupling according to MSA
    • Single +3.3 V Power Supply
    • RoHS 6/6 Compliant
    • 0 to 70oC Operating
    • Class 1 Laser International Safety Standard IEC-60825 Compliant
    • 10Gb/s SONET/SDH ITU-T G.959.1 P1L1-2D2
    • 10Gb/s SONET/SDH ITU-T G.709
    • 10 Gb/s OC-192 / STM-64 LR2
    • 10GBASE-ZR/ZW
    • 80 km 10G Fibre Channel
    • 10G Ethernet with FEC
    TINOUT China factory made 10G SFP+ DWDM 80km SMF, MSA CH21-59,1560.61nm, 1559.79nm, 1558.98nm, 1558.17nm, 1557.36nm, 1556.55nm, 1555.75nm, 1554.94nm, 1554.13nm, 1553.33nm, 1552.52nm, 1551.72nm, 1550.92nm, 1550.12nm, 1549.32nm, 1548.51nm, 1547.72nm, 1546.12nm, 1545.32nm, 1544.53nm, 1543.73nm, 1542.94nm, 1542.14nm, 1541.35nm, 1540.56nm, 1539.77nm, 1538.98nm, 1538.19nm, 1537.40nm, 1536.61nm, 1535.82nm, 1535.04nm, 1534.25nm, 1533.47nm, 1532.68nm, 1531.90nm, 1531.90nm, 1531.12nm, 1530.33nm, DDM/DOM optical transceiver module, good price, 3year warranty, compatible with CISCO,H3C, HUAWEI,ALCATEL, JUNIPER, EXTREME etc. The product is RoHS compliant and lead-free.
