100G QSFP28 SR/LR/ER/ZR
Product introduction£º QSFP28 100G family are new generation of 100G transceiver modules solution based on QSFP fo...
-
100G QSFP28 4ch SR/LR/ER/ZR
Product introduction£ºQSFP28 100G family are new generation of 100G transceiver modules solution based on QSFP form...
-
CISCO OneX Converter Module
Like the move from GBIC to SFP the move from X2 to SFP+ seems inevitable, but currently there are four standa...
-
XENPAK to SFP+ converter for Cisco switches
This converter module converts a 10 Gigabit Ethernet XENPAK port into a 10 Gigabit Ethernet SFP+ port. It give...
-
40Gbps QSFP+ LoopBack modules
Loopback module in a QSFP form factor.The tinout QSFP loopback provides 4 pairs of transmit data channels connected...

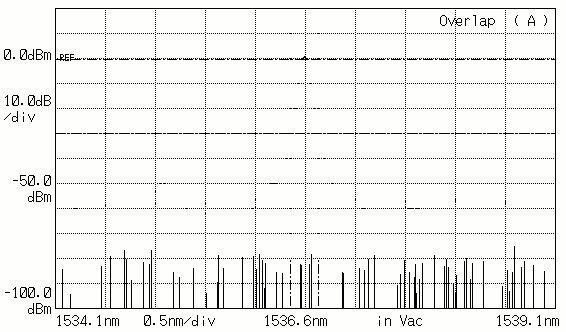

Tunable DWDM to calibrate new fibreglass ¨C with the flexBox and Tunable XFPs

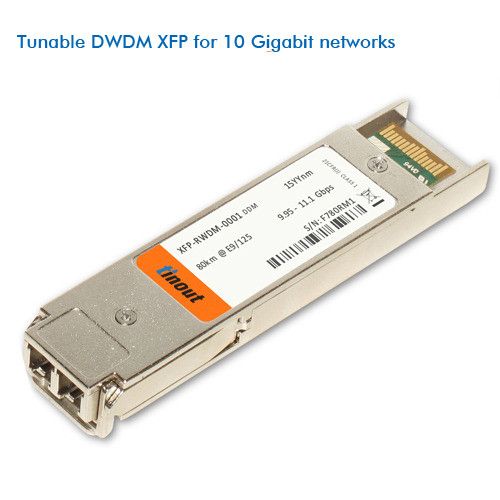

The Tinout DWDM tunable XFP 10 Gbps multiprotocol optical transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gbps to 11.1 Gbps.
Tunable XFP ER 40km|Tunable XFP ZR 80km.
Tinout is a market leader in the production of transceivers compatible with HP, Cisco, 3COM, Allied, Huawei and H3C, as well as devices for designing economic systems such as CWDM and DWDM.
Features:
Supports 9.953 Gbps (SONET and SDH), 10.31 Gbps (Ethernet), 10.52 Gbps (Fibre Channel), and corresponding Forward Error Correction (FEC) rates of 10.66/10.709/11.09/11.35 Gbps
Monolithically integrated full C-band tunable transmitter
50 GHz ITU channel spacing with integrated wavelength locker
40 or 80km reach
Commercial operating temperature from -5¡ãC to 70¡ãC
Maximum power dissipation of 3.5 W
No reference clock required
Digital diagnostic monitoring support
SFF-8477
RoHS 6/6
Telcordia GR-253-CORE and tested in accordance with GR-468
ITU-T G.691
IEEE 802-3ae-2002
10 GFC 1200-SM-LL-L
Class 1 laser safety
Application:
Wide, local, and storage area networks
SONET OC-192 and SDH STM-64
Ethernet and Fibre Channel switches
RODAM / DWDM Networks
Metro, Regional and Long Haul Networks
OTN Networks
Carrier Ethernet
-
40 Gigabit Ethernet LR4 CFP Transceiver Over 10 km
The PLC-CFP-40G-LR is a 40Gb/s transceiver module for optical communication applications compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs c...
-
DWDM SFP+ Optical transceivers
The Tinout DWDM SFP+ is specifically designed for carriers and large enterprises that require a scalable, flexible, cost-effective system for multiplexing, transporting a...
