  •   All Product > 10GbE CWDM|DWDM Modules > CWDM Optical Transceiver

    • CWDM Optical Transceiver

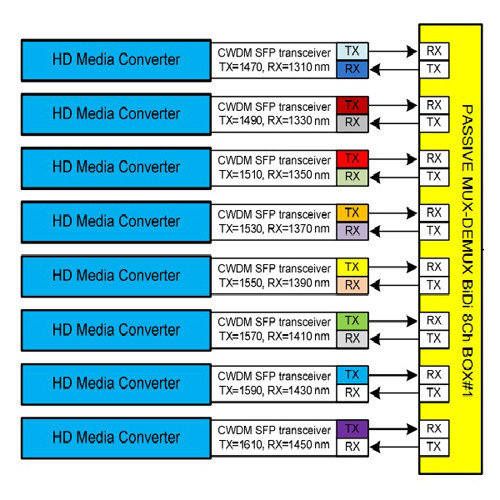

    Features

    Uncooled MQW DFB LD
    1270~1610mm 18 Wavelength Channel Optional
    1X9 Pin/GBIC/SFF/SFP Package Optional
    Single +3.3V or +5V Power Supply,PECL Data Interface
    Operating Temperature from 0 to +70¡æ
    Eye Safety,Designed to Meet Laser Class 1,Compliant with IEC60825-1
    Compliant with Telcordia (Bellcore)GR-468-CORE
    RoHS Compliant Products Available


    Product

    Part Number Data Rate Connector Form Voltage Power
    Budget     		Output Power Sensitivity Application
    CPTR21xx1152
    		155Mb/s SC 1x9SC
    		+5V 33dB -5~0dBm
    		=-38dBm
    		Oc-3/STM-1Fast Ethemet
    CPTR21xx1132
    		155Mb/s SC 1x9SC
    		3.3V 33dB -5~0dBm
    		=-38dBm
    		Oc-3/STM-1Fast Ethemet
    CPTR41xx1152
    		622Mb/s SC 1x9SC
    		+5V 27dB -3~+2dBm
    		=-30dBm
    		OC-12/STM-4
    CPTR41xx1132
    		622Mb/s SC 1x9SC
    		3.3V 27dB -3~+2dBm
    		=-30dBm
    		OC-12/STM-4
    CPTR61xx1152
    		1.25Gb/s SC 1x9SC
    		+5V 22dB -2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTR61xx1132
    		1.25Gb/s SC 1x9SC
    		3.3V 22dB -2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTR61xx11523
    		1.25Gb/s SC 1x9SC
    		+5V 22dB -2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/
    Fiber Channel,SD-TTL
    CPTR61xx11323
    		1.25Gb/s SC 1x9SC
    		3.3V 22dB -2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/
    Fiber Channel,SD-TTL
    CPTR60xx11323
    		1.25Gb/s SC 1x9SC
    		3.3V 30dB -2~+3dBm
    		=-32dBm
    		Gigabit Ethernet/
    Fiber Channel,SD-TTL
    CPTR60xx11523
    		1.25Gb/s SC 1x9SC
    		5V 30dB -2~+3dBm
    		=-32dBm
    		Gigabit Ethernet/
    Fiber Channel,SD-TTL
    CPTR81xx11323
    		2.5Gb/s SC 1x9SC
    		3.3V 18dB 0~+5dBm
    		=-18dBm
    		OC-48/STM-16,SD-TTL
    CPTR80xx11323
    		2.5Gb/s SC 1x9SC
    		3.3V 28dB 0~+5dBm
    		=-28dBm
    		OC-48/STM-16,SD-TTL
    CPTR80xx11523
    		2.5Gb/s SC 1x9SC
    		5V 28dB 0~+5dBm
    		=-28dBm
    		OC-48/STM-16,SD-TTL
    CPTG61xx152
    		1.25Gb/s SC GBIC SC 5V 22dB -2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTG61xx132
    		1.25Gb/s SC GBIC SC 3.3V 22dB -2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTG60xx152
    		1.25Gb/s SC GBIC SC 5V 32dB 0~+5dBm
    		=-32dBm
    		Gigabit Ethernet/Fiber Channel
    CPTG60xx132
    		1.25Gb/s SC GBIC SC 3.3V 32dB 0~+5dBm
    		=-32dBm
    		Gigabit Ethernet/Fiber Channel
    CPTF21xx112
    		155Mb/s LC SFF LC 3.3V 33dB -5~0dBm
    		=-38dBm
    		Oc-3/STM-1Fast Ethemet
    CPTF41xx112
    		622Mb/s LC SFF LC 3.3V 27dB -3~+2dBm
    		=-30dBm
    		OC-12/STM-16
    CPTF61xx112
    		1.25Gb/s LC SFF LC 3.3V 22dB
    		0~+5dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTF81xx112
    		2.5 Gb/s LC SFF LC 3.3V 18dB
    		0~+5dBm
    		=-18dBm
    		OC-48/STM-16
    CPTP21xx12-12
    		155Mb/s LC SFF LC 3.3V 33dB
    		-5~0dBm
    		=-38dBm
    		Oc-3/STM-1Fast Ethemet
    CPTP41xx12-12
    		622Mb/s LC SFF LC 3.3V 27dB
    		-3~+2dBm
    		=-30dBm
    		OC-12/STM-4
    CPTP61xx12-12
    		1.25Gb/s LC SFF LC 3.3V 22dB
    		-2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTP81xx12-12
    		2.5 Gb/s LC SFF LC 3.3V 18dB
    		0~+5dBm
    		=-18dBm
    		OC-48/STM-16
    CPTP21xx12-22
    		155Mb/s LC SFP with DDMI 3.3V 33dB
    		-5~0dBm
    		=-38dBm
    		Oc-3/STM-1Fast Ethemet
    CPTP41xx12-22
    		622Mb/s LC SFP with DDMI 3.3V 27dB
    		-3~+2dBm
    		=-30dBm
    		OC-12/STM-4
    CPTP61xx12-22
    		1.25Gb/s LC SFP with DDMI 3.3V 22dB
    		-2~+3dBm
    		=-24dBm
    		Gigabit Ethernet/Fiber Channel
    CPTP81xx12-22 2.5 Gb/s LC SFP with DDMI 3.3V 18dB 0~+5dBm =-18dBm OC-48/STM-16
    Note:
    1. Add Capital ""F"" at the End of Part # for RoHS Compliant (Lead Free)Products.
    2.There are four kinds of package/formfor CWDM Optical Transceivers,1X9,GBIC,SFF and SFP package,please
    see the chapters of ""1X9 Single-Mode Optical Transceiver"",""GBIC Optical Transceiver"",""SFF Optical
    Transceiver""and""SFP Optical Transceiver"" for Pin Assignment,Recommended Circuit and Mechanical
    Dimensions details.


    Ordering Information

    1X9 Package
    CPTR
    ¡õ¡õ¡õ¡õ¡õ¡õ¡õ¡õ¡õ (abcdefgh)    		   SFF Package
    CPTF
    ¡õ¡õ¡õ¡õ¡õ¡õ¡õ¡õ (abcdefg)

    A Data Rate 2=155Mb/s 4=622Mb/s 6=1.25Gbs
    8=2.5Gb/s 1x9SC
    		+5V
    B Transmission
    Distance     		0=Ultra-Long Reach
    (APD Receiver)     		1=Long Reach
    		2=lntermediate
    3=Short Reach

    C Wavelength 27=1270nm 29=1290nm
    		31=1310nm
    33=1330nm 35=1350nm 37=1370nm
    39=1390nm 41=1410nm 43=1430nm
    45=1450nm 47=1470nm 49=1490nm
    51=1510nm 53=1530nm 55=1550nm
    57=1570nm 59=1590nm 61=1610nm
    D Connector 1=SC/PC 4=Pigtail with LC/PC 5=Pigtail with ST/PC
    6=Pigtail with FC/PC 8=Pigtail with LC/PC 9=SC/APC
    E Operating
    Temperature
    		1=0~70¡æ
    F Operating
    Voltage
    		3=+3.3V 5=+5V
    G Isolator 1=Without Isolator 2=With Isolator
    H Data/SD
    Interface     		Blank=Date-PECL SD-PECL 1=Date-TTL, SD-TTL 3=Date-PECL, SD-TTL

    A Data Rate 2=155Mb/s 4=622Mb/s 6=1.25Gbs
    8=2.5Gb/s

    B Transmission
    Distance     		0=Ultra-Long Reach
    (APD Receiver)     		1=Long Reach
    		2=lntermediate
    3=Short Reach

    C Wavelength 27=1270nm 29=1290nm
    		31=1310nm
    33=1330nm 35=1350nm 37=1370nm
    39=1390nm 41=1410nm 43=1430nm
    45=1450nm 47=1470nm 49=1490nm
    51=1510nm 53=1530nm 55=1550nm
    57=1570nm 59=1590nm 61=1610nm
    D Package Type 1=2¡Á5Pin
    E Operating
    Temperature
    		1=0~70¡æ
    F Isolator 1=Without Isolator 2=With Isolator
    G Data/SD
    Interface     		Blank=SD-LVPECL,
    Data-LVPECL,
    DC Coupling     		1=SD-LVPECL,
    Data- LVPECL
    AC Coupling     		2=SD-LVTTL
    Data-LVPECL
    DC Coupling
    3=SD-LVTTL,
    Data-LVPECL
    AC Coupling




    GBIC Package
    CPTG
    ¡õ¡õ¡õ¡õ¡õ¡õ¡õ (abcdef)    		   SFP Package
    CPTP
    ¡õ¡õ¡õ¡õ¡õ¡õ-¡õ¡õ (abcde-fg)

    A Data Rate 6=1.25Gb/s 8=2.5Gb/s
    B Transmission
    Distance     		0=Ultra-Long Reach
    (APD Receiver)     		1=Long Reach 2=lntermediate
    3=Short Reach

    C Wavelength 27=1270nm 29=1290nm
    		31=1310nm
    33=1330nm 35=1350nm 37=1370nm
    39=1390nm 41=1410nm 43=1430nm
    45=1450nm 47=1470nm 49=1490nm
    51=1510nm 53=1530nm 55=1550nm
    57=1570nm 59=1590nm 61=1610nm
    D Operating
    Temperature
    		1=0~70¡æ
    E Operating
    Voltage
    		3=+3.3V 5=+5V
    F Isolator 1=Without lsolator 2=With Isolator

    A Data Rate 2=155Mb/s 4=622Mb/s 6=1.25Gbs
    8=2.5Gb/s
    B Transmission
    Distance     		0=Ultra-Long Reach
    (APD Receiver)     		1=Long Reach
    		2=lntermediate
    3=Short Reach

    C Wavelength 27=1270nm 29=1290nm
    		31=1310nm
    33=1330nm 35=1350nm 37=1370nm
    39=1390nm 41=1410nm 43=1430nm
    45=1450nm 47=1470nm 49=1490nm
    51=1510nm 53=1530nm 55=1550nm
    57=1570nm 59=1590nm 61=1610nm
    D Operating
    Temperature
    		1=0~70¡æ
    E Isolator 1=Without Isolator 2=With Isolator
    F DDMI 1=Without DDMI 2=With DDMI
    G Application 1=Fiber Channel 2=Others

    Note:
    Add Capital ""F"" at the End of Part # for RoHS
    Compliant (Lead Free)Products.
