TINOUT is a leading supplier of CWDM SFP+, DWDM SFP+, CWDM XFP,
DWDM XFP, bidi SFP+, sfp, sfp transceiver, transceiver, cwdm, industrial temp

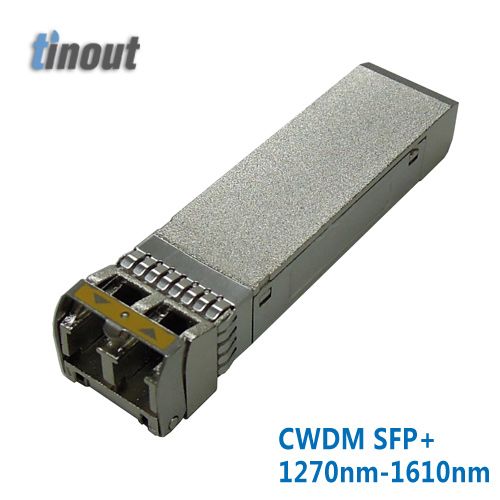

TTP431xCDR SFP+ transceivers,
according to Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable ¡°SFP+¡± Multi-Sourcing Agreement (MSA) SFF-8431 and SFF-8472, revision 10.4,
are designed for CWDM 10G Ethernet data communications up to 40km over single mode fiber. They are compliant with IEEE Std 802.3-2005
10Gb Ethernet 10GBase-ER/EW.
TIN432xCDR are compliant with RoHS.
Applications
˜
˜
Specification datasheet download 10G-40km CWDM SFP+
|
Part Number |
Transmitter |
Output Power |
Receiver |
Sensitivity |
Reach |
Temp |
DDM |
RoHS |
|
TTP4311CDR |
1471nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4312CDR |
1491nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4313CDR |
1511nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4314CDR |
1531nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4315CDR |
1551nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4316CDR |
1571nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4317CDR |
1591nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
|
TTP4318CDR |
1611nm EML |
-4.7 ~ +4dBm |
PIN |
< -15.8dBm |
40km |
0 ~ 70 oC |
Available |
Compliant |
