•   All Product > 40Gbps QSFP+|Quad SFP > 40GbE QSFP+ Copper Cable

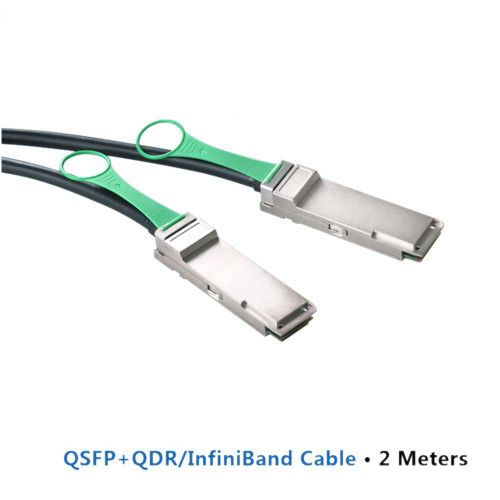

  • QSFP+ (Quad Small Form-factor Pluggable Plus) Cable Assemblies are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. QSFP+ cables are used for 40 GbE and Infniband standards, to maximize performance.

    Cisco compatible 40G QSFP+ related cables are available now. For other brands of system, pls make sure your system support QSFP+ cable with general coding.
    The QSFP+ Modules are 100% compatible with Cisco System, 100% tested under CISCO NEXUS 3000 SWITCH. The QSFP+ modules include:
    1. 40GBASE-SR4 QSFP+ Module and Fiber Cables (Scheduled product)
    2. 40GBASE QSFP+ to Four 10GBASE SFP+ Breakout cable
    3. 40GBASE QSFP+ to QSFP+ direct-attach Cable

    Specifications:
     QSFP+ to QSFP+ Connetor
     Copper Passive
     2 Meters
     AWG30
     Low power consumption
     Excellent EMI performance
     High reliability
     Wide operating temperature range:
       Standard: 0C to +70C
       Industrial: -40C to +85C

    Compliant:
     QSFP+ MSA
     SFF-8436
     QDR infiniband
     10GE/40GE
     RoHS Compliant

    Product PaP No.

    Package

    Datarate

    Application

    Conductor Size

    Transmitting Media

    Distance

    Link-Type

    DDM

    Vol

    QSFP-40-CU1M

    QSFP

    40G

    40GBASE-CR4

    30AWG

    CABLE

    1m

    QSFP

    N

    3.3V

    QSFP-40-CU3M

    QSFP

    40G

    40GBASE-CR4

    30AWG

    CABLE

    3m

    QSFP

    N

    3.3V

    QSFP-40-CU5M

    QSFP

    40G

    40GBASE-CR4

    30AWG

    CABLE

    5m

    QSFP

    N

    3.3V

    QSFP-40-AU7M

    QSFP

    40G

    40GBASE-CR4

    30AWG

    CABLE

    7m

    QSFP

    N

    3.3V

    QSFP-40S-AU10

    QSFP

    40G

    40GBASE-CR4

    30AWG

    CABLE

    10m

    QSFP

    N

    3.3V

    QSFP-40S-CU1M

    QSFP+

    40G

    40GBASE-CR4

    30AWG

    CABLE

    1m

    QSFP-SFP

    N

    3.3V

    QSFP-40S-CU3M

    QSFP

    40G

    40GBASE-CR4

    30AWG

    CABLE

    3m

    QSFP-SFP

    N

    3.3V

    QSFP-40S-CU5M

    QSFP+

    40G

    40GBASE-CR4

    30AWG

    CABLE

    5m

    QSFP-SFP

    N

    3.3V

    QSFP-40S-AU7M

    QSFP+

    40G

    40GBASE-CR4

    30AWG

    CABLE

    7m

    QSFP-SFP

    N

    3.3V

    QSFP-40S-AU10

    QSFP+

    40G

    40GBASE-CR4

    30AWG

    CABLE

    10m

    QSFP-SFP

    N

    3.3V
