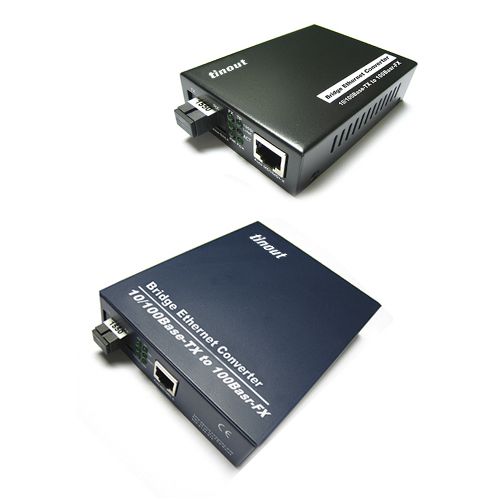

10/100Base-TX to 100Base-FX WDM Media Converter
Description
Tinout Media Converter is 10/100Mbps fast Ethernet converter. The converter mediates between a 10/100Base-Tx segment and a 100Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Features
Provide one fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/FX standard
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100Mbpa rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Indication light: FSD,10/100, L/ACT, F/L,POW, FDX
Easy-to-view LED indicators provides status to easily monitor network activity
External power supply and Internal power supply
Technical Standard
| Standard | IEEE802.3 10BASE-T Ethernet | ||
| IEEE802.3u 100BASE-TX/FX Fast-Ethernet | |||
| IEEE802.3x | |||
| RJ-45 Port | Auto-MDI/MDIX | ||
| Fiber Port | Fiber Type | Wavelength | Send-Power |
| SC/ST/FC | 850/1310/1550nm | MMF:min:-20dBm; max:-10dBm SMF:min:-20dBm; max:0dBm | |
| Network Cable | 10BASE-T: | ||
| Category 3,4 or 5 UTP/STP (Max:100m) | |||
| EIA/TIA- 568 100¦¸STP (Max:100m) | |||
| 100BASE-TX: | |||
| 2pairs of category 5 UTP (Max:100m) | |||
| EIA/TIA- 568 100¦¸STP (Max:100m) | |||
| 100BASE-FX: | |||
| MMF:50/125,62.5/125,100/140(maximum 2Km) | |||
| SMF:8.3/125,8.7/125,9/125,10/125 | |||
| Dimensions(WxDxH) | 95x70x26mm (External power) , 140x110x30mm(Internal power) | ||
| Input Voltage | DC5V1A( External power input:AC100V-AC240V/50-60HZ ) | ||
| Operational Temperature | 0 ¡æ ~50 ¡æ | ||
| Store Temperature | -30 ¡æ ~60 ¡æ | ||
| Humidity | 5%~95% no coagulation | ||
Ordering information:
| P/N | Speed | Fiber Type | Distance | Wavelength | Adapter | |
| Tinout-1201E(SM-20) | 10/100M | SM Single Fiber | 0-20 | 1310T/1550R | SC | External power supply DC,5V,2A |
| Tinout-1202E(SM-20) | 10/100M | 1550T/1310R | ||||
| Tinout-1201E(SM-40) | 10/100M | 0-40 | 1310T/1550R | |||
| Tinout-1202E(SM-40) | 10/100M | 1550T(DFB)/1310R | ||||
| Tinout-1201E(SM-60) | 10/100M | 0-60 | 1310T/1550R | |||
| Tinout-1202E(SM-60) | 10/100M | 1550T(DFB)/1310R | ||||
| Tinout-1201E(SM-80) | 10/100M | 0-80 | 1310T/1550R | |||
| Tinout-1202E(SM-80) | 10/100M | 1550T(DFB)/1310R | ||||
| Tinout-1201(SM-20) | 10/100M | SM Single Fiber | 0-20 | 1310T/1550R | SC | Internal power supply DC,5V,2A |
| Tinout-1202(SM-20) | 10/100M | 1550T/1310R | ||||
| Tinout-1201(SM-40) | 10/100M | 0-40 | 1310T/1550R | |||
| Tinout-1202(SM-40) | 10/100M | 1550T(DFB)/1310R | ||||
| Tinout-1201(SM-60) | 10/100M | 0-60 | 1310T/1550R | |||
| Tinout-1202(SM-60) | 10/100M | 1550T(DFB)/1310R | ||||
| Tinout-1201(SM-80) | 10/100M | 0-80 | 1310T/1550R | |||
| Tinout-1202(SM-80) | 10/100M | 1550T(DFB)/1310R |
