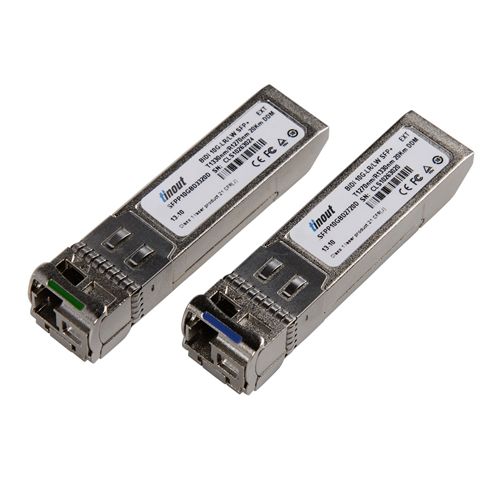

10G SFP+ BIDI Optical Transceiver Module Single Mode Fiber LC Simplex Specifications
Form Factor SFP+ Data Rate 10G Distance 20km Fiber Type SMF Connector Single LC
Tinout's PLS-10G-Bx Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-ER/EW Ethernet and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Application: 10GBASE-LR/LW 10G Ethernet 1200-SM-LL-L 10G Fiber Channel
Key Feature:
Supports 9.95Gb/s to 10.3Gb/s bit rates
Hot-pluggable SFP+ footprint
Single LC for Bi-directional Transmission Maximum link length of 20km Built-in 1330/1270
WDM Uncooled 1270nm or 1330nm CWDM DFB Laser.
Power dissipation <1.5W
No Reference Clock required Built-in digital diagnostic functions Temperature range 0¡ãC to 70¡ãC
Very low EMI and excellent ESD protection RoHS Compliant Part
|
Part No. |
Data Rate |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
10Gbps |
10km |
1270nm |
DFB |
SM |
-1~+3dBm |
¨Q-14.5dBm | |
|
10Gbps |
40km |
1330nm |
DFB |
SM |
0~+5dBm |
¨Q-16.0dBm |
| BiDi CWDM XFP | ||||||||||
| Package Form | Part No. | Fiber Type | Data Rate Range | Wavelength | Laser | Power Budget | Port | Case Temperature range | DDM |
Application |
| BiDi XFP | PLXFP10GBDXXXXB10 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 10dB | LC | Com. | D | 10G/ SDH/ 10GFC |
| BiDi XFP | PLXFP10GBDXXXXB10 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 10dB | LC | Com. | D | 10G/ SDH/ 10GFC |
| BiDi XFP | PLXFP10GBDXXXXB16 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 16dB | LC | Com. | D | 10G/ SDH/ 10GFC |
| BiDi XFP | PLXFP10GBDXXXXB16 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 16dB | LC | Com. | D | 10G/ SDH/ 10GFC |
| BiDi XFP | PLXFP10GBDXXXXB23 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/APD | 23dB | LC | Com. | D | 10G/ SDH/ 10GFC |
| BiDi XFP | PLXFP10GBDXXXXB23 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/APD | 23dB | LC | Com. | D | 10G/ SDH/ 10GFC |
| BiDi SFP+ | ||||||||||
| Package Form | Part No. | Fiber Type | Data Rate Range | Wavelength | Laser | Reach | Port | Case Temperature range | DDM |
Application |
| BiDi SFP+ | PLSFPP10GBD2710D | SMF | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 10km | LC | Ext. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD3310D | SMF | 9.95~11.1G | 1330nm/ 1270nm | DFB/PIN | 10km | LC | Ext. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD2720D | SMF | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 20km | LC | Ext. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD3320D | SMF | 9.95~11.1G | 1330nm/ 1270nm | DFB/PIN | 20km | LC | Ext. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD2740D | SMF | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 40km | LC | Ext. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD3340D | SMF | 9.95~11.1G | 1330nm/ 1270nm | DFB/PIN | 40km | LC | Ext. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD2760D | SMF | 9.95~11.1G | 1270nm/1330nm | DFB/APD | 60km | LC | Com. | D | 10G/ 10GFC |
| BiDi SFP+ | PLSFPP10GBD3360D | SMF | 9.95~11.1G | 1330nm/ 1270nm | DFB/APD | 60km | LC | Com. | D | 10G/ 10GFC |
| BiDi CWDM SFP+ | ||||||||||
| Package Form | Part No. | Fiber Type | Data Rate Range | Wavelength | Laser | Power Budget | Port | Case Temperature range | DDM |
Application |
| BiDi XFP | PLSFPP10GBDXXXXB10 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 10dB | LC | Com. | D | 10G/ 10GFC |
| BiDi XFP | PLSFPP10GBDXXXXB10 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 10dB | LC | Com. | D | 10G/ 10GFC |
| BiDi XFP | PLSFPP10GBDXXXXB16 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 16dB | LC | Com. | D | 10G/ 10GFC |
| BiDi XFP | PLSFPP10GBDXXXXB16 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/PIN | 16dB | LC | Com. | D | 10G/ 10GFC |
| BiDi XFP | PLSFPP10GBDXXXXB23 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/APD | 23dB | LC | Com. | D | 10G/ 10GFC |
| BiDi XFP | PLSFPP10GBDXXXXB23 | SMF | 9.95~11.1G | CWDM/CWDM | DFB/APD | 23dB | LC | Com. | D | 10G/ 10GFC |
