Part No. |
Data Rate |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
10Gbps |
300m |
850nm |
VCSEL |
MM |
-5~-1dBm |
≦-11.1dBm |
|
|
10Gbps |
10km |
1310nm |
DFB |
SM |
-8.2~+1dBm |
≦-12.6dBm |
|
|
10Gbps |
40km |
1550nm |
EML |
SM |
-1~+2 dBm |
≦-16.0dBm |
|
|
10Gbps |
80km |
1550nm |
EML |
SM |
0~+4 dBm |
≦-23.0dBm |
Product-Categories
New Products
100G QSFP28 SR/LR/ER/ZR
Product introduction： QSFP28 100G family are new generation of 100G transceiver modules solution based on QSFP fo...
-
100G QSFP28 4ch SR/LR/ER/ZR
Product introduction：QSFP28 100G family are new generation of 100G transceiver modules solution based on QSFP form...
CISCO OneX Converter Module
Like the move from GBIC to SFP the move from X2 to SFP+ seems inevitable, but currently there are four standa...
XENPAK to SFP+ converter for Cisco switches
This converter module converts a 10 Gigabit Ethernet XENPAK port into a 10 Gigabit Ethernet SFP+ port. It give...
40Gbps QSFP+ LoopBack modules
Loopback module in a QSFP form factor.The tinout QSFP loopback provides 4 pairs of transmit data channels connected...

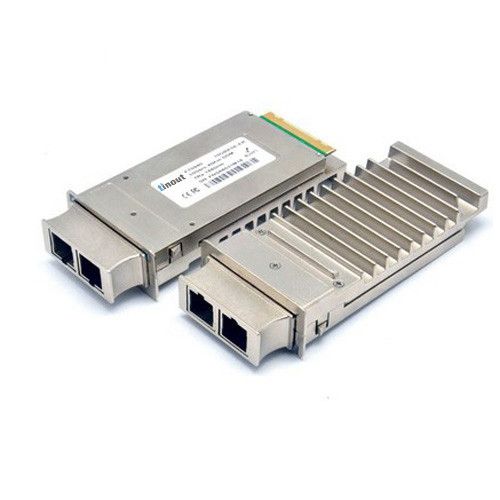

Als Ergänzung zu unseren Fiber-Optic basierten Geräten bieten wir eine kleine Auswahl an 10Gbit/s X2- und XENPAK-Modulen an.
Diese Module kommen von verschiedenen Fremdherstellern. Um die Bestellung zu vereinfachen, definieren wir ihre Bestellnummer über ihre technischen Eigenschaften, um es Ihnen zu ermöglichen, genau die benötigten Module zu erhalten.
Highlights
- Kompatibel zu allen Geräten mit Standard-X2-Slots bzw. XENPAK-Slots
- Ermöglicht die flexible Anpassung der Geräte an Ihre Glasfaser-Infrastruktur
- Duplex SC Adapter passend für Ihren Fasertyp
- Multimode, Singlemode und DWDM verfügbar
Standard Products:
