16A Rack mount Media Converter
Description

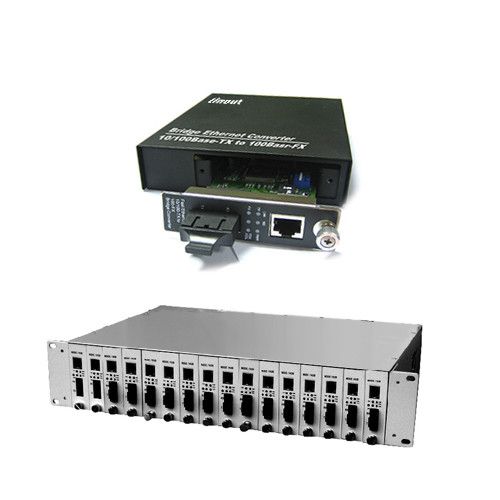

Tinout-R16A Rack mount Media Converter is a 2U rack mount media converter combine for the collective management of the equipment in the equipment room. It is allowed to insert 16 transmitting and receiving modules in different types. It can extend the conventional 10M Ethernet or 100M Fast Ethernet to 20Km-120Km via the quick Ethernet Fiber-optical Line. The collective dual power supplies can ensure the uninterrupted operation of the system.
Features
Every media converter module Provide one fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/FX standard
Auto-detection of half/full duplex transfer mode for Tx port
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Auto-negotiation of 10/100Mbpa rate and Auto-MDI/MDIX for Tx port
Easy-to-view LED indicators provides status to easily monitor network activity
AC100V-AC240V and DC-48V is optional
Technical Standard
| Standard | IEEE802.3 10BASE-T Ethernet | ||
| IEEE802.3u 100BASE-TX/FX Fast-Ethernet | |||
| IEEE802.3x | |||
| RJ-45 Port | Auto-MDI/MDIX | ||
| Fiber Port | Fiber Type | Wavelength | Send-Power |
| SC/ST/FC | 850/1310/1550nm | MMF £º min £º -20dBm £»max £º -10dBmSMF £º min £º -20dBm £»max £º 0dBm | |
| Network Cable | 10BASE-T: | ||
| Category 3,4 or 5 UTP/STP (Max:100m) | |||
| EIA/TIA- 568 100¸STP (Max:100m) | |||
| 100BASE-TX: | |||
| 2pairs of category 5 UTP (Max:100m) | |||
| EIA/TIA- 568 100¸STP (Max:100m) | |||
| 1000BASE-TX: | |||
| Category 5 UTP/STP (Max:100m) | |||
| 1000BASE-FX: | |||
| MMF £º 50/125,62.5/125,100/140(maximum 2Km) | |||
| SMF £º 8.3/125,8.7/125,9/125,10/125(20~120Km) | |||
| Dimensions(WxDxH) | 485x286x90mm( Internal power ) | ||
| Input Voltage | AC100V-AC240V and DC-48V is optional ( Internal power ) | ||
| Operational Temperature | 0 ¡æ ~50 ¡æ | ||
| Store Temperature | -30 ¡æ ~60 ¡æ | ||
| Humidity | 5%~95% no coagulation | ||
Ordering information:
| P/N | Distance | |||||
| Tinout-R14-2 |
14 Port rack double-source power supply 220V/-48V | |||||
| Tinout-3202E(SM-20) |
19inches, 2u Aluminum Rack, 16slots, Support extra power, | |||||
| Tinout-3201E(SM-40) |
Double power supply, 220VAC or -48VDC optional. | |||||
