16W Web-Manageable Rack mount Media Converter
Description

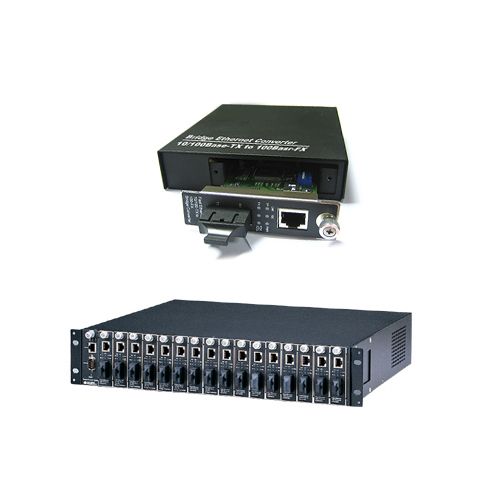

Tinout-R16W Manag eable Rack mount Media Converter is a 2U rack mount media converter combine with a Network Management Unit (MCU). The whole rack contains 15 pieces of media converter module and 1 piece of network managed module. Each module can be used separately, and different kind of converter module can be inserted into one rack. The rack mount media converter adopts communication isolation technology to separate the system power from the converter module totally. Guaranteed the dependability of the whole system It can extend the conventional 10M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the quick Ethernet Fiber-optical Line. The collective dual power supplies can ensure the uninterrupted operation of the system.
Features
It supports local console and Web Management
Every media converter module Provide one fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/FX standard
Auto-detection of half/full duplex transfer mode for Tx port
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Support Local management and Remote management
Support bandwidth options control:2.5M/5.0M ¡¢ 5.0M/50M ¡¢ 7.5M/75M ¡¢ 10M/100M.
Auto-negotiation of 10/100Mbpa rate and Auto-MDI/MDIX for Tx port
Provide configuration of half/full duplex transfer mode for Fx port and Tx port
Provide Flow Control and Link Fault Pass Through configuration
Easy-to-view LED indicators provides status to easily monitor Local and Remote network activity
AC100V-AC240V and DC-48V is optional
Technical Standard
| Standard | IEEE802.3 10BASE-T Ethernet | ||
| IEEE802.3u 100BASE-TX/FX Fast-Ethernet | |||
| IEEE802.3x | |||
| RJ-45 Port | Auto-MDI/MDIX | ||
| Fiber Port | Fiber Type | Wavelength | Send-Power |
| SC/ST/FC | 850/1310/1550nm | MMF £º min £º -20dBm £»max £º -10dBmSMF £º min £º -20dBm £»max £º 0dBm | |
| Network Cable | 10BASE-T: | ||
| Category 3,4 or 5 UTP/STP (Max:100m) | |||
| EIA/TIA- 568 100¸STP (Max:100m) | |||
| 100BASE-TX: | |||
| 2pairs of category 5 UTP (Max:100m) | |||
| EIA/TIA- 568 100¸STP (Max:100m) | |||
| 1000BASE-TX: | |||
| Category 5 UTP/STP (Max:100m) | |||
| 1000BASE-FX: | |||
| MMF £º 50/125,62.5/125,100/140(maximum 2Km) | |||
| SMF £º 8.3/125,8.7/125,9/125,10/125(20~120Km) | |||
| Dimensions(WxDxH) | 485x286x90mm( Internal power ) | ||
| Input Voltage | AC100V-AC240V and DC-48V is optional ( Internal power ) | ||
| Operational Temperature | 0 ¡æ ~50 ¡æ | ||
| Store Temperature | -30 ¡æ ~60 ¡æ | ||
| Humidity | 5%~95% no coagulation | ||
Ordering information:
| P/N | Distance | |||||
| Tinout-R16W |
19inches,2u Aluminum Rack,16slots,Support extra power, ¡¡ | |||||
| Double power supply, Web-based Management. | ||||||
