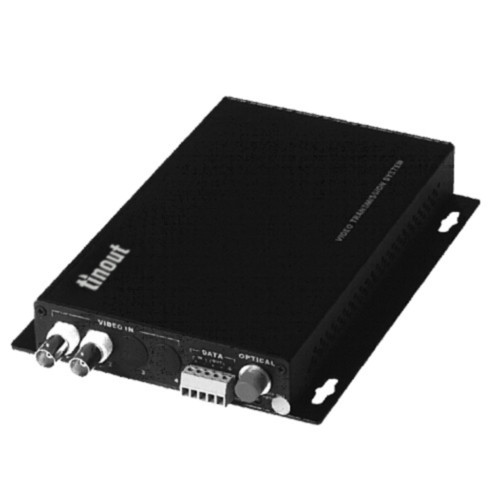

2 Channel Video Optical Transceiver & Options

Product Introduction

Tinout series 2-channel video +1-channel bi-directional data digital multiplexing optical transceiver adopt the advanced international digital video and optical fiber transmission technology, and implement the transmission of real-time & synchronization, no-distortion and high quality to 4-channel video + 2-channel bi-directional data signal on the single-core optical fiber. 4-channel video + 2-channel bi-directional data optical transceiver adopt the full digital video non-compression transmission technology and high quality video effect, which can meet the user's requirement; the play-and-plug design makes the installation more convenient and easier, and it is unnecessary to implement the spot adjustment; its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.

This optical transceiver adopts the structure modularization design, and the user can flexibly select or customize the configuration according to the spot detailed conditions; the above optical transceiver can adopt the installation mode of independent type or framework type.

Applications
Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance

Order Information

Part Number	Wave length （Single Module） （nm）	Transfer distance （Km）	Fiber optical Numbers	Structure
2V
FVDS1200	1310nm	20	1	R/M/U
FVDS1200	1550nm	50	1	R/M/U
2V﹢1D
FVDS1250	1310nm/1550nm	20	1	R/M/U
FVDS1250	1310nm/1550nm	40	1	R/M/U
2V﹢1D
FVDS2212	1310nm/1550nm	20	1	R/M/U
FVDS2212	1310nm/1550nm	40	1	R/M/U
2V+2A
FVDS2202F	1310nm/1550nm	20	1	R/M/U
FVDS2202F	1310nm/1550nm	40	1	R/M/U
2V+2D
FVDS2220	1310nm/1550nm	20	1	R/M/U
FVDS2220	1310nm/1550nm	40	1	R/M/U

The upon products are all supported Ethernet

Power source
12VDC Independent power supply adapter Belt power light
12VDC 4U engine case power source module Belt power light
1UEngine case Contains the power source, the support network management (may select)
4UEngine case The support network management (may select)
Structure information: M means stand-alone, R means 1U 19" rack-mount, U means 4U 19" rack-mount
