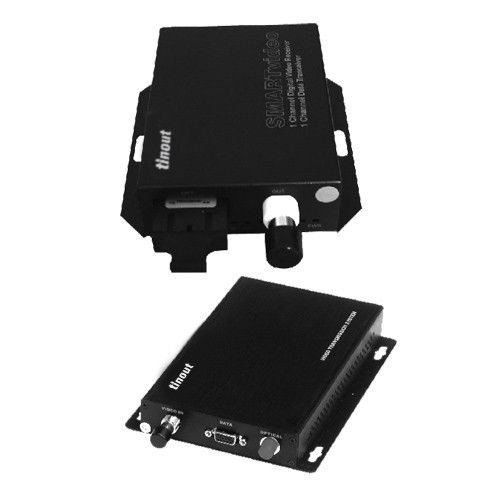

Video optical transceiver （mini type）& options

Product introduction

Tinout series video digital multiplexing optical transceiver adopt the advanced international digital video and optical fiber transmission technology, and implement the transmission of real-time & synchronization, no-distortion and high quality to 1-channelbi-directional video signal on the single-core optical fiber. 1-channelbi-directional video optical transceiver adopt the full digital video non-compression transmission technology and high quality video effect, which can meet the user's requirement; the play-and-plug design makes the installation more convenient and easier, and it is unnecessary to implement the spot adjustment; its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.

This optical transceiver adopts the structure modularization design, and the user can flexibly select or customize the configuration according to the spot detailed conditions; the above optical transceiver can adopt the installation mode of independent type or framework type.

Applications
Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance

Technical Standard

Part Number	Wave length （Single Module） （nm）	Transfer distance （Km）	Fiber optical Numbers	Structure
1V
FVDS1100	1310nm/1550nm	20	1	R/M/U
FVDS1100	1310nm/1550nm	40	1	R/M/U
1V﹢2A
FVDS1102	1310nm/1550nm	20	1	R/M/U
FVDS1102	1310nm/1550nm	40	1	R/M/U
1V﹢A+1D
FVDS1111	1310nm/1550nm	20	1	R/M/U
FVDS1111	1310nm/1550nm	40	1	R/M/U
1V﹢1A+1D+1C
FVDS1111-1C	1310nm/1550nm	20	1	R/M/U
FVDS1111-1C	1310nm/1550nm	40	1	R/M/U
1V﹢2A+1D
FVDS1112	1310nm/1550nm	20	1	R/M/U
FVDS1112	1310nm/1550nm	40	1	R/M/U
1V﹢2A+1D
FVDS1112-1RV	1310nm/1550nm	20	1	R/M/U
FVDS1112-1RV	1310nm/1550nm	40	1	R/M/U
1V﹢3A+1D+1C
FVDS2113-1C	1310nm/1550nm	20	1	R/M/U
FVDS2113-1C	1310nm/1550nm	40	1	R/M/U

The upon products are all supported Ethernet

Power source
12VDC Independent power supply adapter Belt power light
12VDC 4U engine case power source module Belt power light
1UEngine case Contains the power source, the support network management (may select)
4UEngine case The support network management (may select)
Structure information: M means stand-alone, R means 1U 19" rack-mount, U means 4U 19" rack-mount
