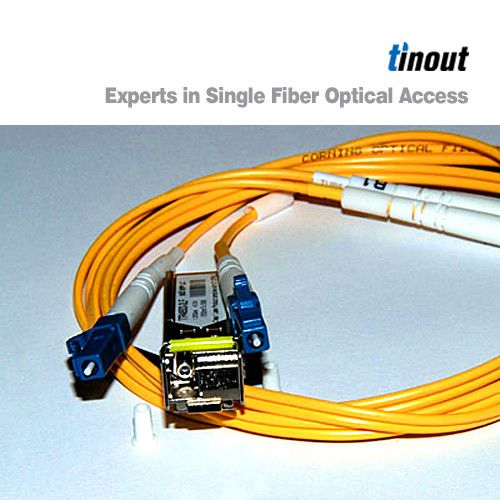

3KM WDM SFP Optical Transceiver
Features
Single Fiber Bi-Directional Operation
Integrated 1550/1310nm
Single +3.3V Power Supply
LVPECL/PECL Data Interface, DC Coupling
SFP Package Optional
Maximum Soldering Temperature&Time:240¡æ/10s
Compliant with Telcordia(Bellcore)GR-468-CORE
Eye Safety,Designed to Meet Laser Class 1, Compliant with IEC60825-1
RoHS Compliant Products Available
Tinout is a leader in the production of transceivers compatible with HP, Cisco, 3COM, Allied, Huawei and H3C, as well as devices for designing economic systems such as CWDM and DWDM
We guarantee compatibility or invoice correction. The manufacturer guarantees compatibility with a selected switch during the guarantee period even if the firmware of a given device has been altered by its manufacturer.
Product
| Part Number | Data Rate | Source | Wavelength | Voltage | Distance | Output Power | Sensitivity | Connector | Application |
| PTP4232-3 PTP4252-3 |
155Mb/s |
FP FP |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V |
20km | -13¡«-6dBm |
¡Ü-33dBm |
SC,LC | OC-3/STM-1/ Fast Ethernet |
| PTP4234-3 PTP425D4-3 |
155Mb/s |
FP DFB |
1310nmT8x/1550nmRx 1550nmTx/1310nmRx |
3.3V |
40km | -5¡«0dBm |
¡Ü-34dBm |
SC,LC |
OC-3/STM-1/ Fast Ethernet |
| PTP4236-3 PTP425D6-3 |
155Mb/s |
FP DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V |
60km | -3¡«+2dBm |
¡Ü-34dBm |
SC,LC |
OC-3/STM-1/ Fast Ethernet |
| PTP4249C8-3 PTP425D8-3 |
155Mb/s |
DFB DFB |
1490nmTx/1550nmRx 1550nmTx/1490nmRx |
3.3V |
80km | ¡Ý0dBm |
¡Ü-35dBm |
SC,LC |
OC-3/STM-1/ Fast Ethernet |
| PTP4435-3 PTP4455-3 |
622Mb/s |
FP FP |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V |
5km | -13¡«-6dBm |
¡Ü-26dBm |
SC,LC |
OC-12/STM-4 |
| PTP4631-3 PTP465D1 |
1.25Gb/s |
FP DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V |
15km | -9¡«-3dBm |
¡Ü-22dBm |
SC,LC |
Gigabit Ethernet/Fiber Channel |
| PTP46303-3 PTP46503-3 |
1.25Gb/s |
FP FP |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V |
3km | -3¡«-11dBm |
¡Ü-21dBm |
SC,LC |
Gigabit Ethernet/Fiber Channel |
| PTP463D4-3 PTP465D4-3 |
1.25Gb/s |
DFB DFB |
1310nmTx/1550nmRx 1550nmTx/1310nmRx |
3.3V |
40km | -2¡«+3dBm |
¡Ü-23dBm |
SC,LC |
Gigabit Ethernet/Fiber Channel |
| PTP4649C8-3 PTP465D8-3 |
1.25Gb/s | DFB DFB |
1490nmTx/1550nmRx 1550nmTx/1490nmRx |
3.3V |
80km | ¡Ý0dBm | ¡Ü-24dBm | SC,LC |
Gigabit Ethernet/Fiber Channel |
1. Add Capital "F" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended for Reference.
