Description:

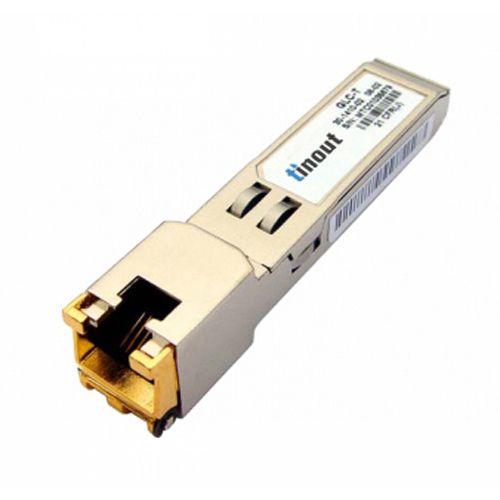

Tinout's 1000BASE-T or 10/100/1000BASE-T Autonegotiation can be installed into optical SFP slots enabling an optical Ethernet port (1000Base-X) to be converted into a copper Ethernet port (1000Base-T) either in the field or in production. RJ45 Transceivers are compatible with Gigabit Ethernet and 1000BASE-T standards
Features:
Support 1000BASE-T Operation in Host Systems or 10/100/1000 BASE-T operation in host systems with SGMII interface.
100m Reach Over UTP Cat5 Cable
Hot-Pluggable SFP FoTTPrint
Fully Metallic Enclosure for Low EMI
Low Power Dissipation (1.05W Typical)
Compliant with SFP MSA
Comercial or Industrial case temperature range
Compliant with IEEE Std 802.3-2002
Application:
LAN 10/100/1000Base-T
Gigabit Ethernet over Cat 5 Cable
Switch to Switch Interface
Router|Server Interface
Copper SFPs
Part No. |
Data Rate |
Distance |
TX Disable Function |
10/100/1000Base-T or 1000Base-T |
100m |
NO | |
10/100/1000Base-T or 1000Base-T |
100m |
YES |
-
