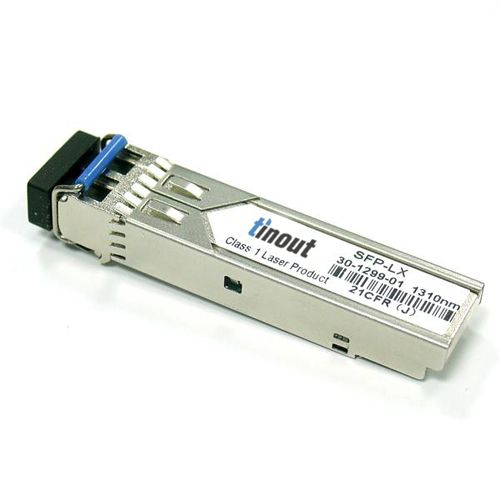

SFP Transceiver

Features

Hot-Pluggable, Duplex LC Connector
Single +3.3V Power Supply,
LVPECL Data Interface
850/1310/1550nm VCSEL/FP/DFB, SM/MM Fiber Optional
Eye Safety, Designed to Meet Laser Class 1,Compliant with IEC60825-1
Compliant with Telcordia (Bellcore) GR-468-CORE
RoHS Compliant Products Available


Product

Part Number	Data Rate	Source	Wavelength	Voltage	Distance	Output Power	Sensitivity	Connector	DDMI Function	Application
PTP-T	1.25Gb/s	-	-	-	0.1km	-	-	RJ45 Cable	NO	Gigabit Ethernet over Cat 5 cable
PTP8285-3	155Mb/s	VCSEL	850nm	3.3V	2km	-9～-3dBm	≤-24dBm	LC	NO	OC-3/STM-1/Fast Ethernet
PTP8232-3	155Mb/s	FP	1310m	3.3V	20km	-15～-8dBm	≤-36dBm	LC	NO	OC-3/STM-1/Fast Ethernet
PTP8234-3	155Mb/s	FP	1310m	3.3V	40km	-5～0dBm	≤-36dBm	LC	NO	OC-3/STM-1/Fast Ethernet
PTP825D8-3	155Mb/s	DFB	1550m	3.3V	80km	-5～0dBm	≤-36dBm	LC	NO	OC-3/STM-1/Fast Ethernet
PTP8432-3	622Mb/s	FP	1310m	3.3V	20km	-15～-8dBm	≤-28dBm	LC	NO	OC-12/STM-4
PTP845D8-3	622Mb/s	DFB	1550m	3.3V	80km	-3～+2dBm	≤-28dBm	LC	NO	OC-12/STM-4
PTP8685-3	1.25Gb/s	FP	850m	3.3V	0.5km	-9～-3dBm	≤-17dBm	LC	NO	Gigabit Ethernet
PTP8631-3	1.25Gb/s	FP	1310m	3.3V	15km	-9～-3dBm	≤-22dBm	LC	NO	Gigabit Ethernet
PTP863D4-3	1.25Gb/s	DFB	1310m	3.3V	40km	-2～+3dBm	≤-23dBm	LC	NO	Gigabit Ethernet
PTP865D8-3	1.25Gb/s	DFB	1550m	3.3V	80km	-2～+3dBm	≤-24dBm	LC	NO	Gigabit Ethernet
PTP8883-3	2.5Gb/s	VCSEL	850m	3.3V	0.3km	-9～-3dBm	≤-18dBm	LC	NO	OC-48/STM-16
PTP8832-3	2.5Gb/s	FP	1310m	3.3V	2km	-9～-3dBm	≤-18dBm	LC	NO	OC-48/STM-16
PTP883D2-3	2.5Gb/s	DFB	1310m	3.3V	15km	-5～0dBm	≤-18dBm	LC	NO	OC-48/STM-16
PTP885D4-3	2.5Gb/s	DFB	1550m	3.3V	40km	-2～+3dBm	≤-18dBm	LC	NO	OC-48/STM-16
PTP8285D-3	155Mb/s	VCSEL	850m	3.3V	2km	-9～-3dBm	≤-24dBm	LC	YES	OC-3/STM-1/Fast Ethernet
PTP8232D-3	155Mb/s	FP	1310m	3.3V	20km	-15～-8dBm	≤-36dBm	LC	YES	OC-3/STM-1/Fast Ethernet
PTP8234D-3	155Mb/s	FP	1310m	3.3V	40km	-5～0dBm	≤-36dBm	LC	YES	OC-3/STM-1/Fast Ethernet
PTP825D8D-3	155Mb/s	DFB	1550m	3.3V	80km	-5～0dBm	≤-36dBm	LC	YES	OC-3/STM-1/Fast Ethernet
PTP8432D-3	622Mb/s	FP	1310m	3.3V	20km	-15～-8dBm	≤-28dBm	LC	YES	OC-12/STM-4
PTP8434D-3	622Mb/s	FP	1310m	3.3V	40km	-3～+2dBm	≤-28dBm	LC	YES	OC-12/STM-4
PTP8685D-3	1.25Gb/s	VCSEL	131850m	3.3V	0.5km	-9～-3dBm	≤-17dBm	LC	YES	Gigabit Ethernet
PTP8632D-3	1.25Gb/s	FP	1310m	3.3V	15km	-9～-3dBm	≤-22dBm	LC	YES	Gigabit Ethernet
PTP863D4D-3	1.25Gb/s	DFB	1310m	3.3V	40km	-2～+3dBm	≤-23dBm	LC	YES	Gigabit Ethernet
PTP865D8D-3	1.25Gb/s	DFB	1550m	3.3V	80km	-2～+3dBm	≤-24dBm	LC	YES	Gigabit Ethernet
PTP8883D-3	2.5Gb/s	VCSEL	850m	3.3V	0.3km	-9～-3dBm	≤-18dBm	LC	YES	OC-48/STM-16
PTP8832D-3	2.5Gb/s	FP	1310m	3.3V	2km	-9～-3dBm	≤-18dBm	LC	YES	OC-48/STM-16
PTP883D2D-3	2.5Gb/s	DFB	1310m	3.3V	15km	-5～0dBm	≤-18dBm	LC	YES	OC-48/STM-16
PTP885D4D-3	2.5Gb/s	DFB	1550m	3.3V	40km	-2～+3dBm	≤-18dBm	LC	YES	OC-48/STM-16

Note:
1. Add Capital "F" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended for Reference.
