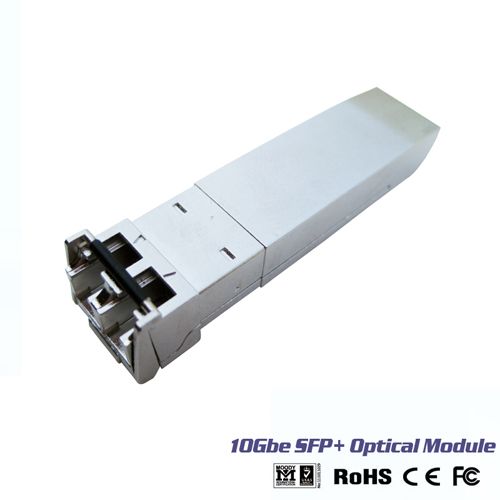

SFP+ 10GB Optical Transceiver Module
Features
SFP+ transceiver are multi-purpose optical modules
10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm.
The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications
based on the IEEE 802.3ae and Fibre Channel standards,
Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet.
Products
Part Number |
Data Rate |
Source |
Wavelength |
Voltage |
Distance |
Output Power |
Sensitivity |
Application |
10Gbps |
VCSEL |
850nm |
3.3V |
300m |
-5~-1dBm |
¨Q-11.1dBm |
10 Gigabit Ethernet/Fiber Channel | |
10Gbps |
DFB |
1310nm |
3.3V |
10km |
-8.2~+0.5dBm |
¨Q-14.0dBm |
10 Gigabit Ethernet/Fiber Channel | |
10Gbps |
EML |
1550nm |
3.3V |
40km |
-1~+2 dBm |
¨Q-16.0dBm |
10 Gigabit Ethernet/Fiber Channel | |
10Gbps |
EML |
1550nm |
3.3V |
80km |
0~+4 dBm |
¨Q-23.0dBm |
10 Gigabit Ethernet/Fiber Channel |
1. Add Capital ""F"" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended for Reference.
-
